WALK
Gait analysis
Cadence, speed, step length, stance and swing phases, left/right symmetry index.
Our approach
Protocol, measurement, report.
The equipment is the means; the result is a report that sits in the patient record and that the patient understands. Here you can see what is measured, what the output looks like, and which package suits which type of facility.
Workflow
- Assessment
- Therapy
- Follow-up
- Report
Measurement protocols
Nine standardised tests, one sensor.
All protocols are run with the same G-SENSOR and take a few minutes. The result is automatically compared with normative values and with the same patient’s previous measurements.
TUG
Timed Up and Go
Standing up, walking, turning and sitting down broken into phases — not just a total time on a stopwatch.
BALANCE
Balance and postural control
Trunk sway with eyes open and closed, area and length of the centre-of-mass path.
SHOULDER
Shoulder mobility
Flexion, abduction and rotations in degrees, comparing the healthy and affected sides.
CERVICAL ROM
Cervical range of motion
Flexion, extension, lateral flexion and rotation of the cervical spine.
TRUNK ROM
Trunk range of motion
Mobility of the lumbar and thoracic spine in three planes.
JUMP
Jump
Jump height, flight and contact time, take-off and landing symmetry.
POWER-FORCE-VELOCITY
Power and velocity
Force–velocity–power profile for load planning and recovery monitoring.
FREE TEST + sEMG
Free test and EMG

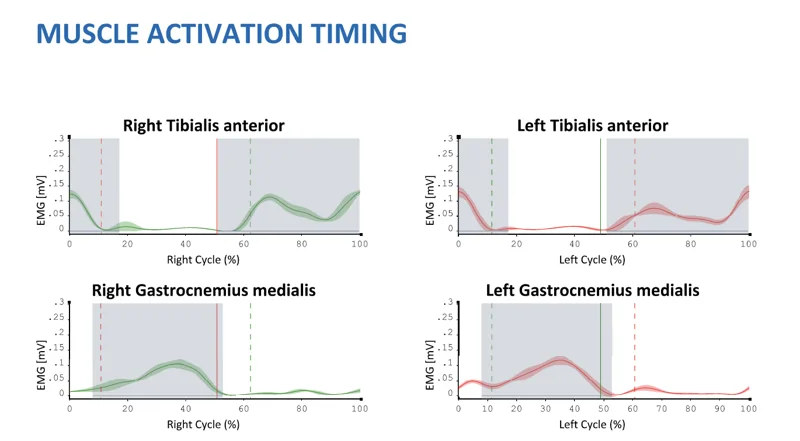

Your facility’s own protocol, with optional recording of muscle activation using FREEEMG probes.
What the report contains
One page that both the patient and the insurer understand.

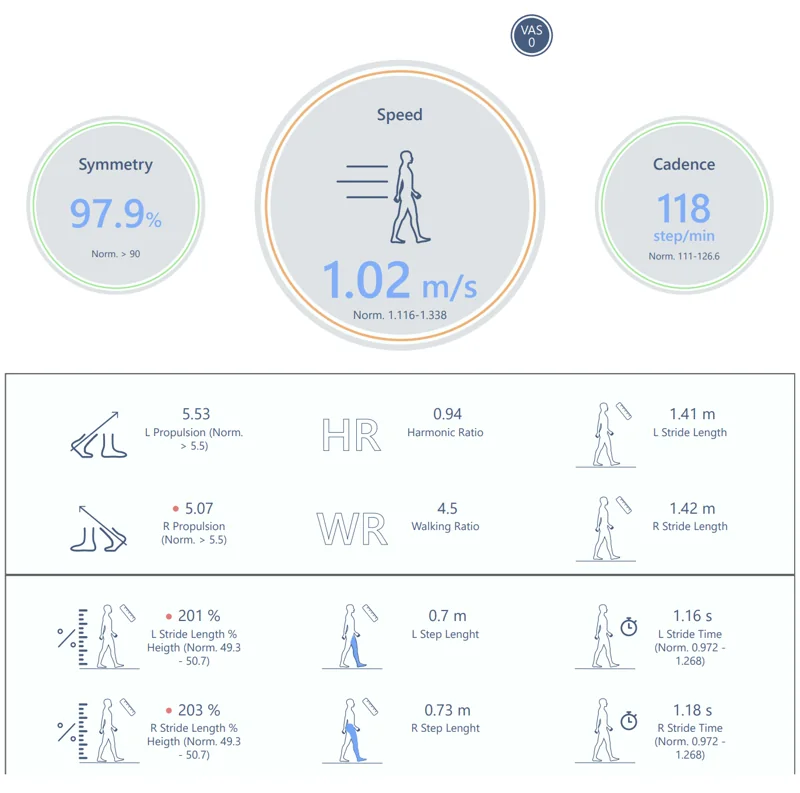

Measured values
A numerical result for each parameter, in monospace so the columns line up.
Comparison with norms
Target zones show whether a value is within the expected range for age and sex.

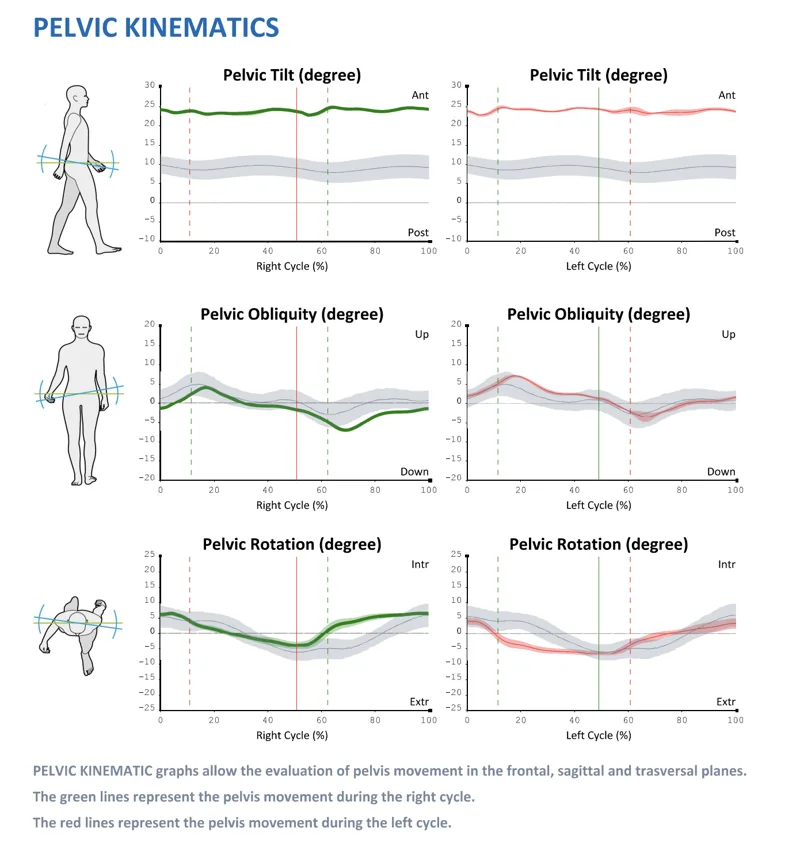

Trend over time
Comparison with the same patient’s previous sessions — evidence that the therapy works.
Interpretation and recommendation
A short clinical conclusion and a suggested next step in the programme.

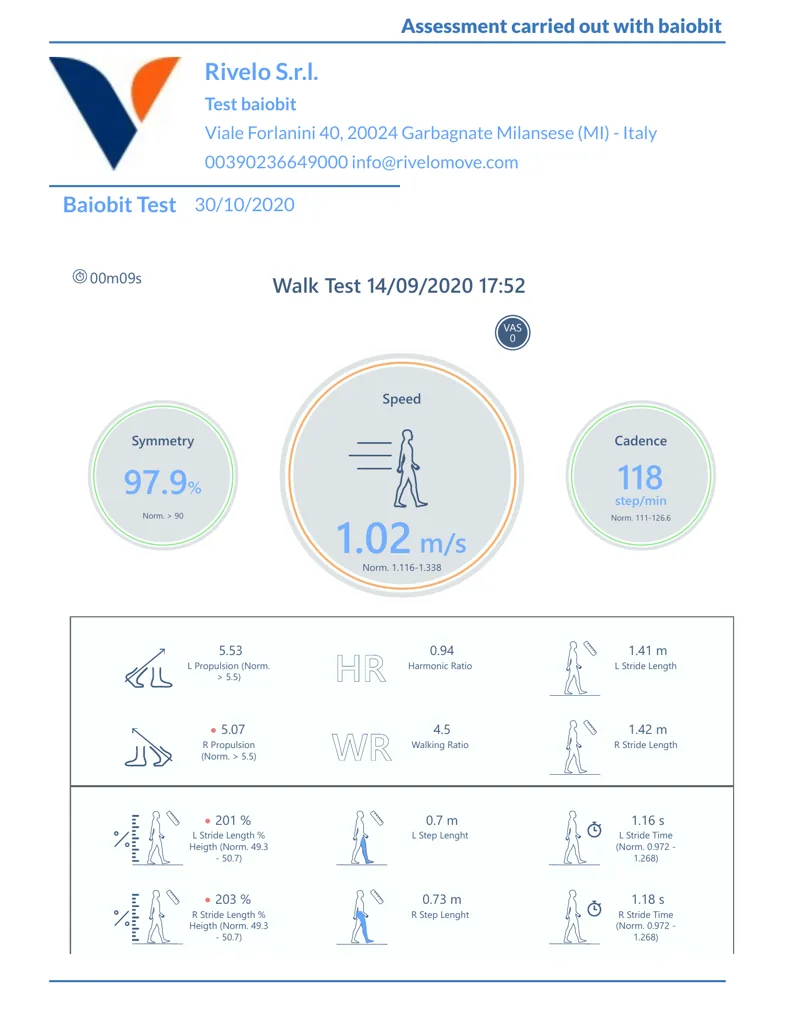

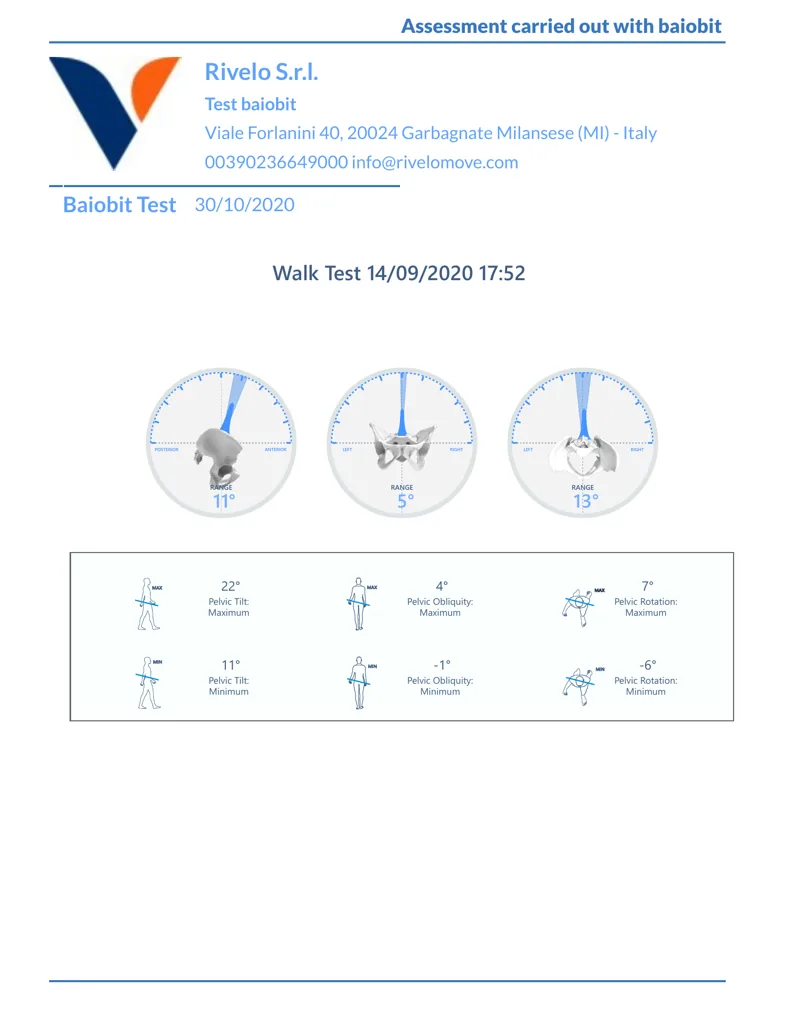

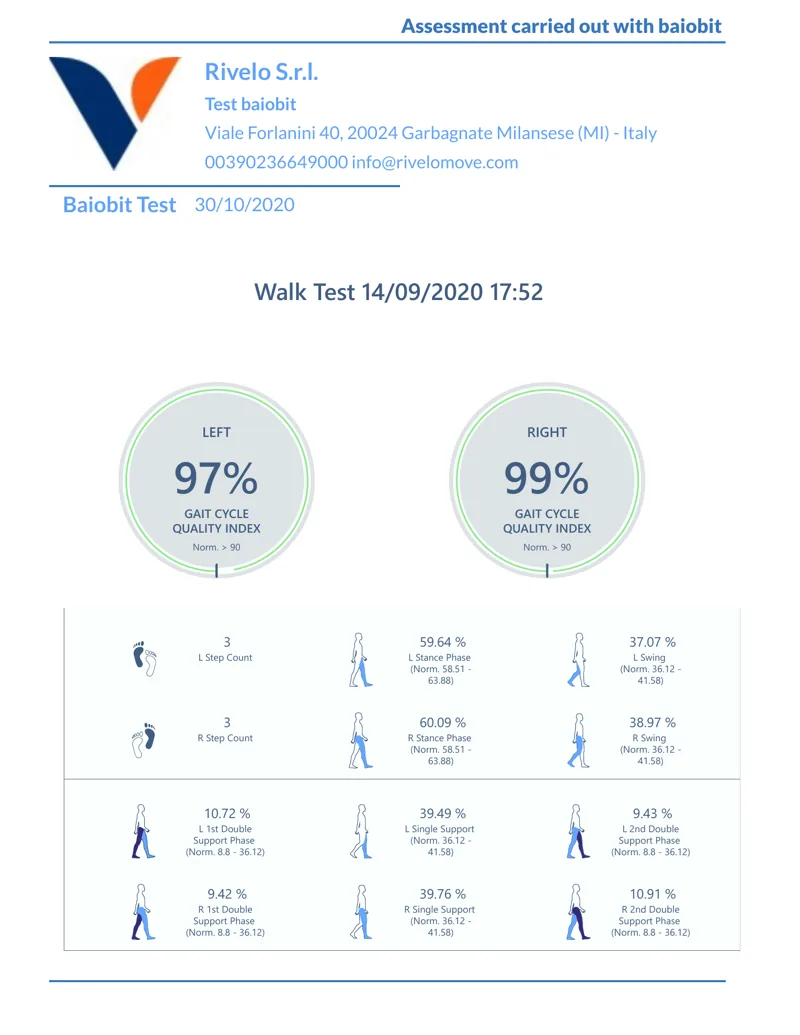

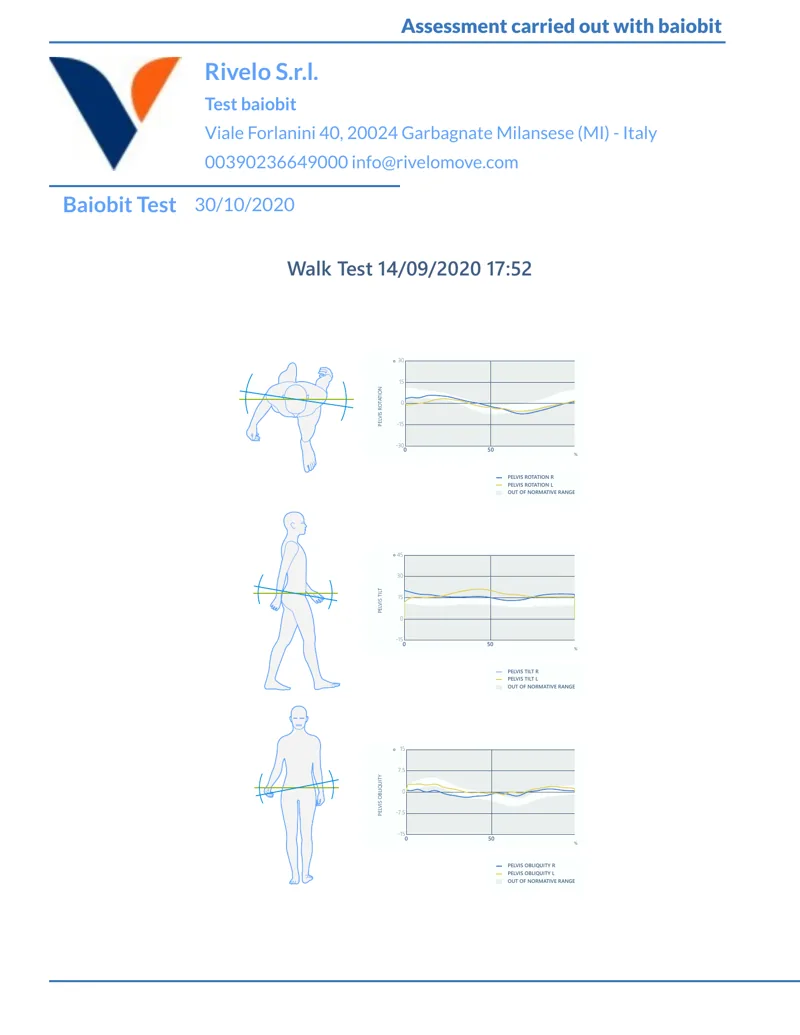

Sample report: Baiobit WALK
Page 1 of 4Open PDF
Solution packages
Three starting configurations
Every package includes the equipment, installation, team training and the first year of support. The final set-up is tailored after a site visit and a conversation with your team.
Package 01
Outpatient clinic / private practice
For teams that want measurable results without remodelling their space.
- BTS G-WALK with Baiobit software
- WALK, TUG, BALANCE and ROM protocols
- Report templates in your language
- One-day on-site training
Price on request
Package 02 · Most popular
Neurorehabilitation department
Measurement and therapy in the same week, for patients after stroke.
- BTS G-WALK and FREEEMG
- CUREO VR system with full kit
- Saebo upper-limb set
- Training for occupational therapy and physiotherapy
- Quarterly check-up and calibration
Price on request
Package 03
Sports and research laboratory
For screening, return to play and research.
- BTS G-SPORT and FREEEMG
- P-6000 digital force platform
- JUMP and Power-Force-Velocity protocols
- Raw data export for analysis
- Support with project applications
Price on request
Send us one of your cases — we’ll come back with a suggested protocol and what the report will look like.
No obligation and no patient data. A description of your department and a typical patient is enough.
